320KVA Transformers

Name: China Cheap 320KVA Transformers Manufacturers Suppliers Factory - 320KVA Transformers Price - NOYARK
Brand: Noyark
SKU: 286402798

Characteristics of 320kva transformers include excellent dissipation of heat, tight construction, their self-extinguishing property, high efficiency, low noise, easy installation, and low maintenance.
Model: SG-320KVA
Rated Power: 320KVA
Input Voltage: Client to specify
Output Voltage: Client to specify
MOQ: 1 Set/Piece
OEM & ODM Service: Available
Brand: Noyark
Packaging: Plywood Case
Payment Methods: T/T, L/C, Western Union, Credit Card

Send Inquiry

Product Introduction

Specifications

Type	Dry Type Transformer
	General Purpose Transformer
	Vacuum Pressure Impregnated Transformer
	Autotransformer / Isolation Transformer
Rated Power	320KVA	Display	Analog Voltmeter
Input Voltage	Client to specify	Input Current	320*1000/Input Voltage/1.732
Input Connection	Star (Wye) or Delta	Cooling	AN or AF
Output Voltage	Client to specify	Output Current	320*1000/Output Voltage/1.732
Output Connection	Star (Wye) or Delta	Insulation Resistance	≥500MΩ @ 1000V DC
Vector Group	Yyn0, Dyn11, etc	Dielectric Strength	3000V AC
Phase Number	3	K Factor	N/A
Working Frequency	50/60Hz	Altitude	≤1000m
Winding Material	Aluminum (copper optional)	Relative Humidity	≤95% (non-condensing)
Insulation Class	F (H optional)	Ambient Temperature	-15℃ to +45℃
Impedance	4%	Protection Degree	IP20 (IP00, IP44 and above optional)
Efficiency	≥98%	Installation	Indoor (outdoor optional), floor mounted
Duty Cycle	Continuous	Standard	IEC 60076-11

*Specifications subject to change without prior notice.

*Specifications subject to vary for models with different configurations.

Gallery

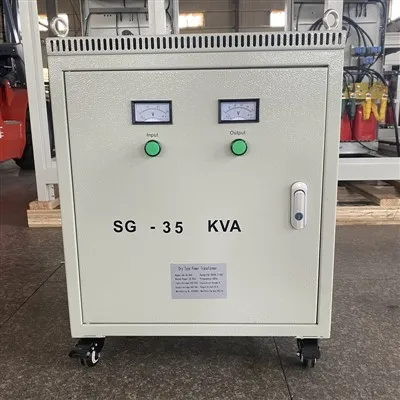

380v 400v 415v 440v 480v 690v transformer

*All images are representative only.

*Detailed information on size, weight and other technical details should be confirmed with us.

Ultimate Guide

1. What is Autotransformer?

In an autotransformer, the primary and secondary share a common winding. The secondary voltage always has a common terminal with the primary. Step-up or step-down of the voltage is achieved by a tap from the winding measuring from the common end.

2. Advantages and Disadvantages of Auto Transformer?

Advantages:

Cheap and more efficient.

Less leakage inductance between primary and secondary, thus less losses.

Simple construction to the OEM.

Smaller footprint for same VA rating.

Disadvantages:

No galvanic isolation. This is because windings are shared, faults and transients may couple from supply to load; autotransformers must not be used where protective separation is required.

As the primary and secondary share a common end, if the neutral side of the primary voltage is not grounded, the secondary side will not be either.

A failure of the winding insulation of the autotransformer will result in full input voltage applied to the output.

3. Applications of Auto-transformer

Used as a starter to give up to 50 to 60% of full voltage to the starter of a squirrel cage induction motor during starting up.

Used to give a small boost to a distribution cable, to correct the voltage drop.

Used as a voltage regulator.

Used in power transmission and distribution systems, audio system and railways simply to act as a voltage changer.

4. What is an Isolation Transformer?

Transformers with primary (input) and secondary (output) windings separated from each other are known as isolation transformers or insulating transformers. Under this construction, the input power and the output power are electrically separated by a dielectric insulation barrier, hence, providing a galvanic isolation.

5. Benefits of Isolating Transformers

Better power quality.

Noise reduction.

Reduces surges.

Safety.

6. Usage of Isolated Transformers

Simply step up & down voltage as a voltage converter.

Provide galvanic isolation.

1:1 ratio transformers, where input and output voltage are the same.

3:1 ratio transformers.

Medical equipment.

Why Choose Us

15⁺Years of experience
in one-stop service

Noyark's Dry-type Transformers are a new generation of reliable, safe, environment-friendly, and energy-saving high-tech transformers. They are particularly suitable for locations with high humidity or where fire-resistance is a high priority or loads fluctuate such as airports, high-rise buildings, densely populated areas, basements, cargo ships, offshore drilling platforms and nuclear power plants, etc.
