SCR Automatic Voltage Regulator Stabilizer 200 KVA

SCR Automatic Voltage Regulator Stabilizer 200 KVA
200kva static voltage stabilizer

SCR Automatic Voltage Regulator Stabilizer 200 KVA

Name: China SCR Automatic Voltage Regulator Stabilizer 200 KVA Manufacturers Suppliers Factory - NOYARK
Brand: Noyark
SKU: 286293203

scr automatic voltage regulator stabilizer 200 kva corrects fluctuating AC supply voltages without using any moving parts, relying on silicon controlled rectifiers (SCRs), and buck-boost transformers with electronic control for precise, fast, and reliable voltage regulation.
Model: ZBW-200KVA
Rated Power: 200KVA
Input Voltage: 380VAC±20%
Output Voltage: 380VAC±3%
MOQ: 1 Set/Piece
OEM & ODM Service: Available
Brand: Noyark
Packaging: Plywood Case
Payment Methods: T/T, L/C, Western Union, Credit Card

Send Inquiry

Product Introduction

Specifications

Type	Static, Solid State, Using SCR (Thyristor)
Type	Air Cooled (AN or AF)
Rated Power	200KVA	Display	LCD Screen
Input Voltage	380VAC	Bypass Mode	Automatic
Regulation Range	±20%	Regulation Mode	3 Phase Independent Control
Output Voltage	380VAC	Noise Level	≤55dB
Output Accuracy	±3%	Insulation Resistance	≥500MΩ @ 1000V DC
Waveform Distortion	Nil	Dielectric Strength	3000V AC
Phase Number	3	Response Time	≤20ms
Protections	Input Circuit Breaker, Under/Over Voltage, Overload, Short Circuit
Working Frequency	50/60Hz	Altitude	≤1000m
Winding Material	Aluminum (full copper optional)	Relative Humidity	≤95% (non-condensing)
Insulation Class	F (H optional)	Ambient Temperature	-15℃ to +45℃
Overload	150%, 30s, 200%, 10s	Protection Degree	IP20 (IP44 and above optional)
Efficiency	≥98%	Installation	Indoor (outdoor optional), floor mounted
Duty Cycle	Continuous	Standard	IEC 61558-1
Optional Accessories	Output Circuit Breaker; Surge Arrestor; Galvanic Isolation Transformer; Phase Sequence Protection Device; Harmonic Filter; Over Temperature Protection; Auto Restart; RS485

*Specifications subject to change without prior notice. We offer customization service, you can send us your detailed requirements.

Features

Fast Response Time: Static voltage stabilizers consist of only electronic circuits (not moving part) hence it can correct output voltages at the high speed.

Continuity: Non-contact voltage stabilizers with automatic bypass function, make sure the load power supply is uninterrupted.

Independent Phase Control: All 3 phase static regulators with independent phase regulation.

Compact Size: Solid-state voltage stabilizers have compact size due to small size buck boost transformer. It is light in weight compared to servo AC voltage stabilizers and can save installation space.

Low Maintenance: In SCR based static voltage regulators there is no moving parts, no wear and tear hence low maintenance.

Silent Operation: Static stabilizers without mechanical parts, it is contactless and low noise level.

High Accuracy: Static thyristor-based voltage stabilizers regulators using electronic circuit to achieve precise regulation, ±1% tolerance available.

Main Parts

Main Control Board

It samples the output voltage, calculates the adjustment needed and sends the respective signal to drive board and scr.

Display Screen

It shows Input Voltage, Output Voltage, Output Current, Working Status, Frequency, etc. RS485 Port is available.

SCRs+Drive Boards

The quantity of thyristor may vary according to the power rating. Each phase with one drive board.

Buck / Boost Transformers

These transformers are standard dry type transformer that connected in series between the network and load.

Servo Vs Static

dRIVE PART
ASPECT	SERVO STABILIZER	STATIC STABILIZER
TECHNOLOGY	Rely on Motor-driven mechanical components	use power electronic components (like SCRs or IGBTs)
REGULATION RANGE	±15%, 20%, 30%, even up to ±50%	Better within ±20%
RESPONSE TIME	≤1s	Fast, ≤20ms
OUTPUT ACCURACY	Commonly ±3%	Up to ±1%
BYPASS MODE	Manual	Automatic
REGULATION MODE	3 Phase Independent Regulation is Optional for small Power Rating Units	All units with 3 Phase Independent Regulation
aPPLICATION	Suitable for all load types - resistive, inductive & capacitive	Not very Suitable for high-inrush current/inductive load applications, Should Calculate the Power Rating based on the inrush Current
MAINTENANCE	Mechanical parts lead to maintenance requirements.	No moving parts (other than fans), reducing maintenance requirements.
NOISE	Potential Noise due to mechanical operations	Quiet Operation
OVERLOAD	Very Good	Good

*Remember always to consider the specific requirements of your application, as there isn't a universal "Best" choice between these two options.

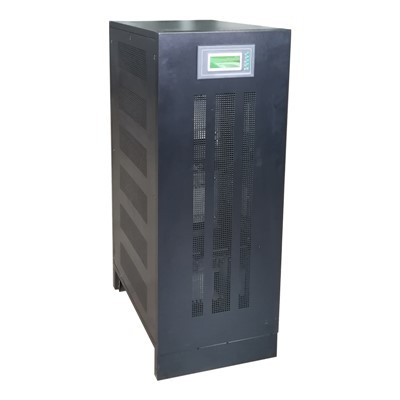

Gallery

*All images are representative only. Detailed information on size, weight and other technical details should be confirmed with us.

Buying Guides

Calculate the kVA Rating. Evaluate the power consumption of the equipment or machine you will connect to the automatic voltage stabilizer. 3-phase kVA calculation: voltage x amperage x 1.732 / 1,000; 1-phase kVA calculation: voltage x amperage / 1,000. It is advisable to choose a thyristor voltage stabilizer with 25–30% additional capacity to handle extra load in the future.

Determine the Input (primary) and Output (secondary) Voltage. Input voltage is the voltage of the source electricity that needs to be regulated, output voltage is the voltage being supplied by the scr voltage stabilizer. Note that every different machine and appliance requires a specific voltage, Noyark scr based avr stabilizers ensure the incoming power supply is regulated and provides the precise output voltage you need.

Choose the Right Phase Number. 1-phase power is found in homes and small buildings, while 3-phase power is found in larger commercial and industrial settings.

Evaluate Input Voltage Range. Voltage fluctuations differ depending on geographical location and power supply quality. You need to identify: the lowest voltage your area experiences and the highest voltage recorded.

Check Neutral Line Availability. Wye (Star) or Delta connection. In star connection, there is four wire, three wires are phase wire and fourth is neutral which is taken from the star point. In delta connection, there is three wires alone and no neutral terminal is taken.

Choose Suitable Protection Degree. IP20, IP44 and above.

Identify Installation Conditions. It is necessary to know: indoor or outdoor installation; installation site altitude and climatic characteristics; ambient temperature.
