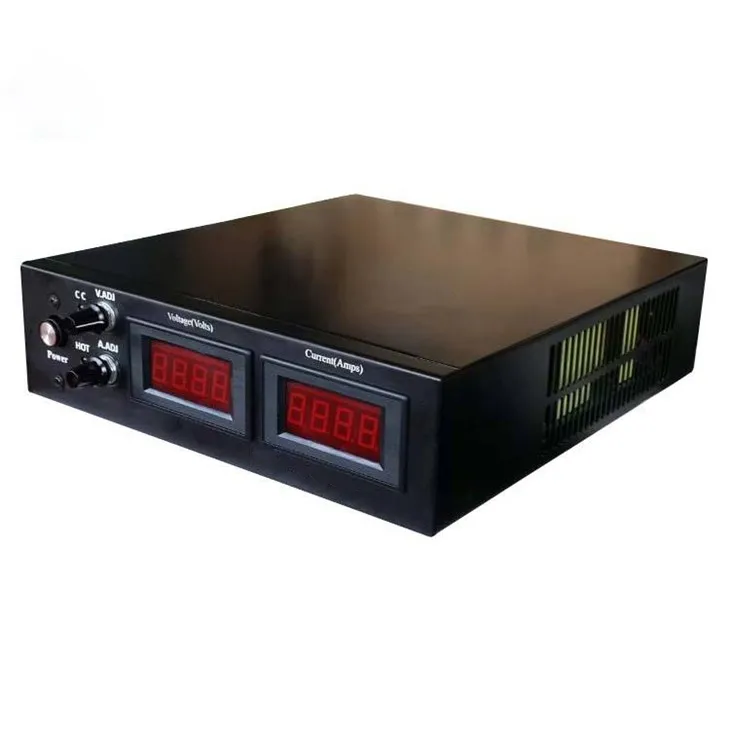

DC 1000 Volt Power Supply
Model: NDCP-Rated Power
Rated Power: Client to specify
Input Voltage: 220VAC±15%
Output Voltage: 0-1000VDC
Output Current: Client to specify
MOQ: 1 Set/Piece
OEM & ODM Service: Available
Brand: Noyark
Packaging: Plywood Case
Payment Methods: T/T, L/C, Western Union, Credit Card
Specifications
|
Rated Power |
Client to specify |
MTBF |
≥50,000 Hours |
|
AC Input Voltage |
220VAC ± 15%, Single Phase |
DC Input Voltage |
230-330VDC |
|
Output Voltage |
0-1000VDC |
Efficiency |
≥86% |
|
Output Current |
Client to specify |
Output Adjustable Range |
0-100% |
|
Duty Cycle |
Continuous |
Adjustment Method |
Potentiometer |
|
LED Display |
Voltmeter, Ammeter |
Communication Port |
0-5/0-10V Analog Signal (optional) |
|
Line Regulation |
≤0.2% |
Standard |
IEC 61204-7:2018 |
|
Load Regulation |
CV≤1%, CC≤2% |
Altitude |
≤1000m |
|
Ripple Voltage |
≤2% |
Relative Humidity |
≤95% (non-condensing) |
|
Protections |
Soft Start, Over-Voltage, Over-Current, Short-Circuit, Over-Temperature, Cooling Fan |
||
|
Insulation Resistance |
Input- Output: ≥20MΩ |
Dielectric Strength |
Input- Output:1000VAC, 10mA, 1 Minute |
|
Input- Enclosure: ≥20MΩ |
Input- Enclosure: 1000VAC, 10mA, 1 Minute |
||
|
Output- Enclosure: ≥80MΩ |
Output- Enclosure: 1000VAC, 10mA, 1 Minute |
||
|
Cooling |
Temperature-controlled Fan |
Working Temperature |
-5 to 45℃ |
|
Protection Degree |
IP20 |
Storage Temperature |
-20 to 60℃ |
*Specifications subject to change without prior notice.
*Specifications subject to vary for models with different configurations.
Features
Small size, light weight and high efficiency.
AC and DC compatible input, wide input range.
Support multiple units (no master module) parallel operation.
Full protections including temperature controlled cooling fans, overheat, overvoltage, overcurrent, short circuit and soft start.
Output voltage and current from 0-100% continuously adjustable within rated range.
Simple installation, easy to use.
Panel Description
1. POWER switch; 2. CC: Constant Current Indicator.
3. HOT: Overheat Indicator; 4. V.ADJ & A.ADJ: Output Voltage & Current Adjustment Potentiometer.
5. Output VOLTAGE & CURRENT Display LED Meter.
1. Input & Output Terminals.
2. Do not support RS232 or RS485 communication.
3. 0-5V / 0-10V Analog is available for remote control.
4. All images are representative only.
applications
Noyark switching mode dc power supplies find applications across various fields and industries, including:
1. General purpose use including R&D, manufacturing and testing.
2. High power / high current applications.
3. Communications systems, mobile stations, network equipment, etc.
4. Electroplating, anodizing, electroforming, electrophoresis, etc.
5. Battery charging and equalization for lithium Ion batteries, marine and vehicle batteries, etc.
6. Electrolysis, waste treatment, hydrogen generator, fuel cell applications, etc.
7. DC motors, automotive, aviation and marine applications, etc.
